8 x 18 mm PVC Metal-Reinforced Pinchweld Edge Trim

Product Overview

SealsHub supplies the 8 x 18 mm PVC Metal-Reinforced Pinchweld Edge Trim, a U channel edge protection profile designed for panel edges with a 0.5–3 mm grip range.

With a 16 mm channel depth, this profile provides extended coverage along the panel edge. The flexible PVC outer layer covers exposed panel edges and helps protect them from abrasion, impact, and general handling.

The internal metal reinforcement supports gripping along the panel edge, helping the trim remain securely positioned during installation and use. Its larger profile height and deeper channel make it suitable for applications requiring increased edge coverage.

The push-on design allows the trim to be fitted directly onto the panel edge without adhesive or additional fixing hardware in most applications.

Key Features

• Metal-reinforced U channel profile
• Designed for 0.5–3 mm panel thicknesses
• 16 mm channel depth for extended edge coverage
• Flexible PVC outer layer for edge protection and finishing
• Internal metal reinforcement for secure panel retention
• Suitable for metal and plastic panels
• Push-on installation for quick application
• Available in Blue, Red, Gray, and Black
• Supplied in coils / rolls
• Custom sizes, colors, and profiles available upon request

Specifications

Profile Design

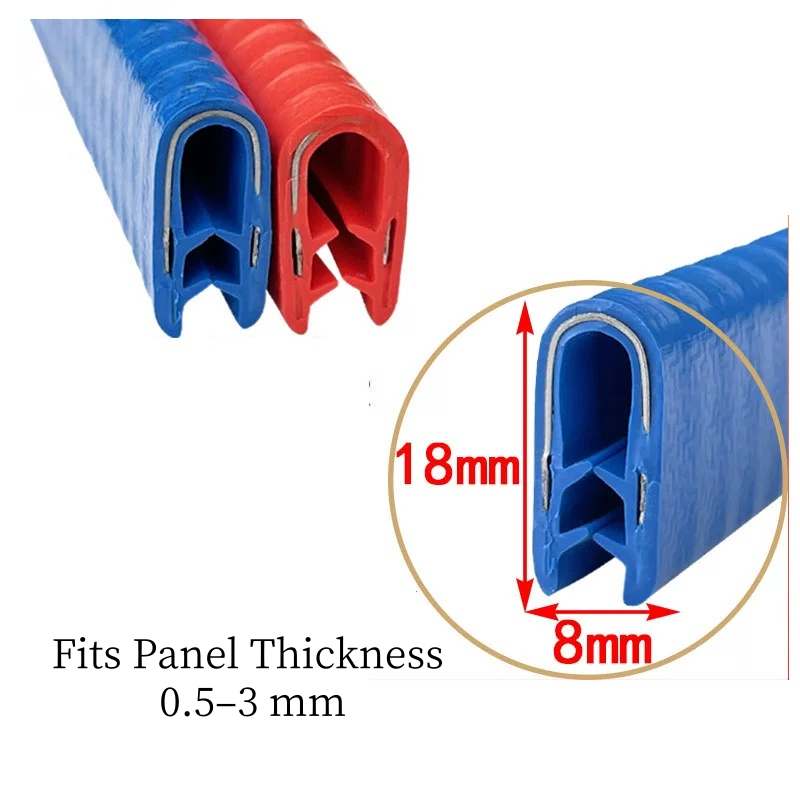

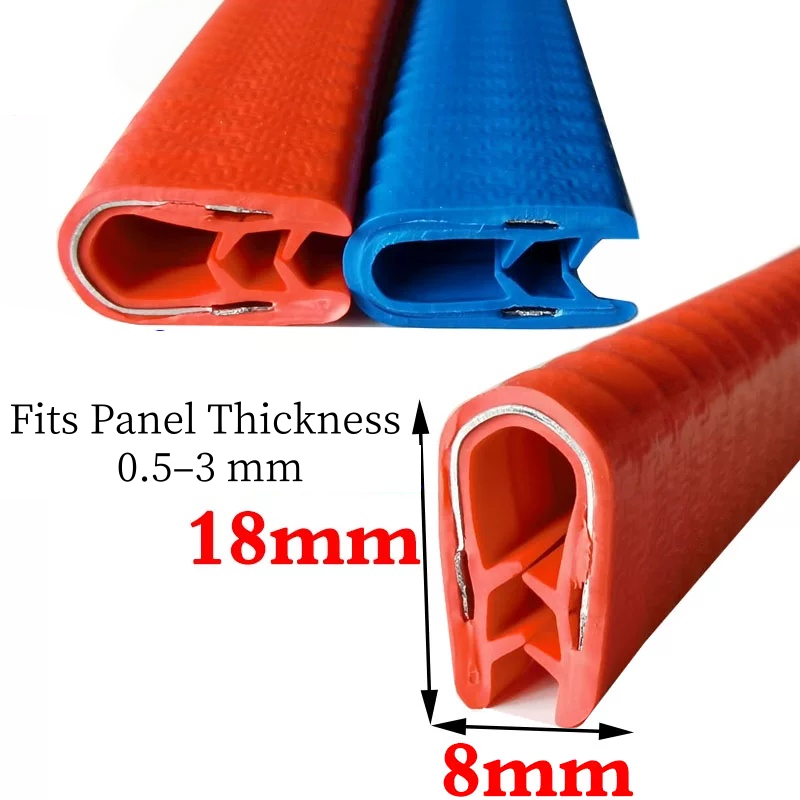

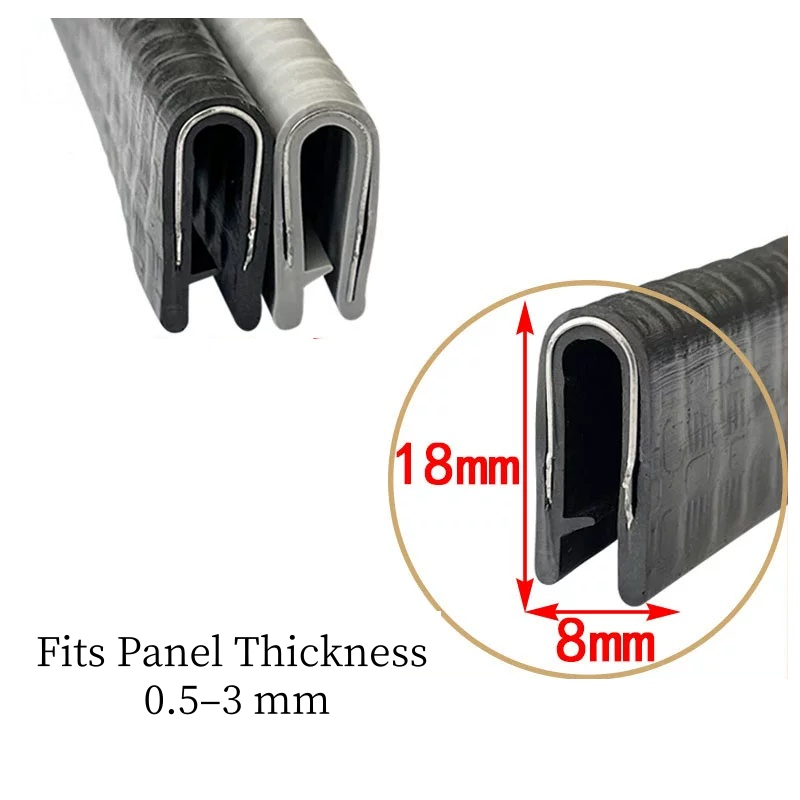

The 8 x 18 mm U channel profile is designed for panel edges with a 0.5–3 mm grip range.

Its 16 mm channel depth provides increased coverage along the panel edge compared with smaller Pinchweld profiles. The internal metal reinforcement supports gripping along the edge, while the flexible PVC exterior covers the exposed panel edge and provides a clean finished appearance.

Installation

1. Clean the panel edge to remove dust, oil, or debris.
2. Align the U channel opening with the panel edge.
3. Press the profile firmly into place until fully seated.

No adhesive or additional fixing hardware is normally required.

Applications

Common applications include:

• Sheet metal panel edges
• Electrical cabinets and control panels
• Equipment housings and enclosures
• Machinery covers and protective guards
• Instrument panels and access covers
• Metal and plastic panel finishing
• General industrial edge protection

Custom Options

SealsHub supplies custom Metal-Reinforced Pinchweld Edge Trim for OEM and industrial applications.

Custom options include:

• Profile dimensions

• Panel grip ranges

• PVC colors and finishes

• Metal carrier specifications

• Roll lengths

• Custom tooling and mold development

FAQ

What panel thickness does this 8 x 18 mm Pinchweld Edge Trim fit?

This profile is designed for 0.5–3 mm panel edges, including metal and plastic panels within the specified grip range.

Does the trim require adhesive?

No. The U channel is designed for push-on installation, and adhesive or additional fixing hardware is normally not required.

What type of reinforcement does the profile use?

The profile features internal metal reinforcement within the flexible PVC structure to support gripping along the panel edge.

Can custom colors or sizes be supplied?

Yes. SealsHub can supply custom profile dimensions, grip ranges, colors, finishes, and roll lengths for OEM applications.
