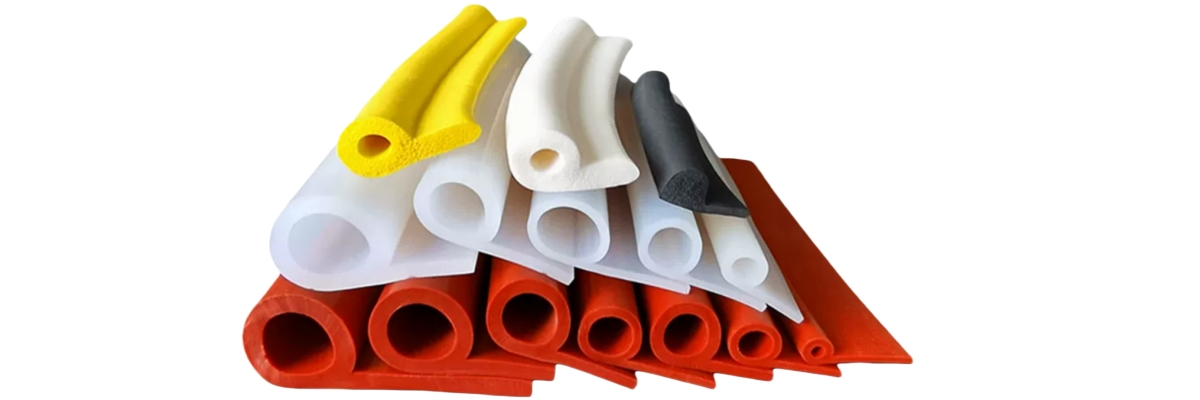

P-Shaped Seal Strip

A P-Shape Seal is an elastomeric gasket or weatherstrip with a cross-section resembling the letter "P". This design is characterized by a hollow, bulbous sealing head connected to a solid, tail-like mounting leg. It is engineered primarily for compression sealing on flat or slightly contoured surfaces. How It Works & Key Advantages The "P" geometry is optimized for static and compression-based sealing: Low-Closure Force Sealing: The hollow bulb compresses easily with minimal force, creating a wide and effective sealing contact area. This makes it ideal for doors or panels that should not require excessive effort to close. Excellent Conformability: The bulbous head easily conforms to surface irregularities, ensuring a consistent seal even on imperfect or slightly uneven flanges. High Recovery & Durability: The hollow design provides excellent compression recovery (memory), allowing the seal to bounce back after repeated opening and closing cycles, maintaining long-term performance. Simple Installation: The solid tail is designed for easy insertion into a pre-designed retention channel or groove, providing a secure mechanical anchor. Primary Applications The P-Shape seal is predominantly used in applications where a robust static seal with easy closure and good environmental exclusion is required. 1. Transportation & Vehicles: Bus & RV Doors/Compartments: A classic application for passenger doors, baggage compartments, and access panels, where a weather-tight seal with easy operation is critical. Rail & Rolling Stock: Used on exterior and interior doors, cabinet doors, and access panels. Commercial Trucking: Sealing cargo bay doors, access hatches, and sleeper cab compartments. Marine: Sealing hatches, windows, and doors on boats and ships. 2. Building & Construction: Industrial Doors: Sealing large sectional overhead doors, roll-up doors, and industrial access doors on warehouses and factories. Architectural Glazing & Panels: Used as a perimeter seal for fixed or operable curtain wall panels, skylights, and glazed assemblies. Cleanroom & Cold Room Doors: Providing an airtight or insulated seal for controlled environments. 3. Industrial & Enclosure: Electrical Enclosures & Control Cabinets: Creating an environmental seal (IP54/IP65) on doors of outdoor or washdown-rated panels. Machinery Guards & Covers: Sealing removable panels to contain noise, fluids, or debris. Container & Shelter Doors: Used on shipping containers, mobile shelters, and ISO containers. Common Materials EPDM Rubber: The most common material, offering excellent all-weather durability, ozone resistance, and a typical temperature range of -40°C to +120°C. Silicone Rubber: Chosen for extreme high-temperature applications (up to 230°C) or specific chemical resistance needs. Closed-Cell Sponge EPDM: Sometimes used in a P-shape profile for even lower closure force and superior thermal insulation properties. PVC/Nitrile: Used in cost-sensitive applications with less demanding environmental requirements. In summary, the P-Shape Seal is a highly effective and widely used compression seal profile. Its combination of easy compression, excellent conformity, and secure mounting makes it a fundamental solution for sealing doors, panels, and enclosures across the transportation, construction, and industrial equipment industries.
