26 x 28 mm Pinchweld Edge Trim with Single Grip Tooth on One Side
![]()
Product Overview
SealsHub supplies the 26 x 28 mm PVC Metal-Reinforced Pinchweld Edge Trim with Single Grip Tooth on One Side, a heavy-duty U channel profile designed to protect and finish thick panel edges with a grip range of 18–22 mm.
The profile combines a flexible PVC outer layer with an embedded metal carrier to provide reinforced edge retention while maintaining flexibility for installation. With a 25 mm internal channel height, it provides extended coverage for thick metal and plastic panel edges.
A single grip tooth on one side creates contact with the panel edge to help maintain the trim position after installation. The flexible PVC exterior helps protect exposed edges from abrasion, impact, and general wear while providing a clean finished appearance.
The push-on design allows the profile to be installed directly onto the panel edge without adhesive or additional fixing hardware in most applications. The robust structure makes it suitable for large panels and industrial edge protection applications.
![]()
Key Features
- Heavy-duty U channel profile for thick panel edge protection
- Single grip tooth on one side for profile retention
- Embedded metal carrier for reinforced edge support
- Flexible PVC outer layer for edge protection and finishing
- 25 mm internal channel height for extended edge coverage
- Suitable for panel thicknesses from 18–22 mm
- Push-on installation without adhesive or additional fixing hardware
- Suitable for metal and plastic panel applications
- Supplied in coils / rolls for continuous installation
![]()
![]()
Specifications
| Item | Details |
|---|
| Product Type | Metal-Reinforced Pinchweld Edge Trim |
| Profile Shape | U Channel |

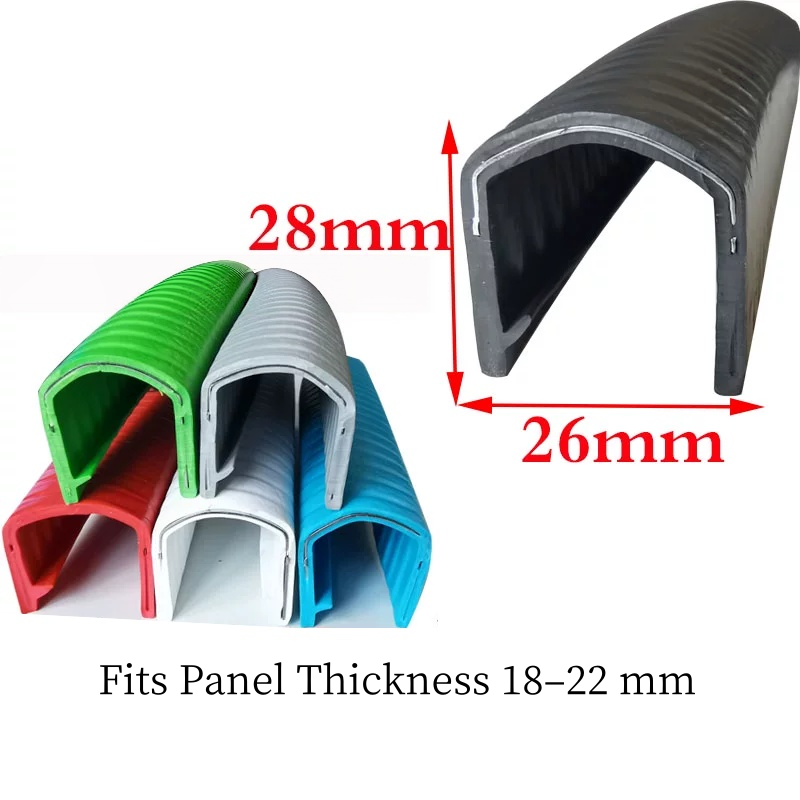

| Profile Size (W x H) | 26 x 28 mm |
| Grip Range | 18–22 mm |
| Internal Channel Height | 25 mm |
| Internal Grip Structure | Single Grip Tooth on One Side |
| Metal Carrier | Embedded Metal Carrier |
| Material | PVC + Metal Carrier |
| Structure | Flexible PVC Outer Layer with Embedded Metal Carrier |
| Installation | Push-On Installation |
| Supply Form | Coil / Roll |
| Colors | Black, Green, Red, White, Brown, Gray, Blue |
Profile Design
The 26 x 28 mm U channel profile combines a flexible PVC outer layer with an embedded metal carrier to provide reinforced edge retention for thick panel applications.
The single grip tooth structure is positioned on one side of the channel to create contact with the panel edge and help maintain the trim position after installation. The 25 mm internal channel height provides extended coverage for larger panel edges requiring additional protection.
This construction provides a balance of flexibility, edge protection, and secure retention for metal and plastic panel edges.
Installation
The Pinchweld Edge Trim is installed by pressing the U channel directly onto the panel edge.
- Clean the panel edge to remove dust, oil, and debris.
- Align the channel opening with the panel edge.
- Press the profile firmly onto the edge until fully seated.
- Check that the trim is evenly positioned along the required edge.
The internal grip teeth and metal carrier help maintain the profile position after installation. No adhesive or additional fixing hardware is normally required.
![]()
![]()
Applications
Common applications include:
- Thick sheet metal edges
- Electrical cabinets and control panels
- Equipment housings and enclosures
- Machinery covers and protective guards
- Large fabricated panels
- Metal and plastic panel edge finishing
- Industrial equipment protection
- General heavy-duty edge protection
Custom Options
SealsHub supplies custom Metal-Reinforced Pinchweld Edge Trim for OEM and industrial applications.
- Profile dimensions
- Panel grip ranges
- Grip tooth configurations
- PVC colors and finishes
- Metal carrier specifications
- Roll lengths
- Custom tooling and mold development
FAQ
What is Pinchweld Edge Trim used for?
Pinchweld Edge Trim is used to cover, protect, and finish exposed edges of metal and plastic panels. The U channel design provides a push-on edge covering for industrial and fabricated components.
How does the Pinchweld Edge Trim stay in place?
The internal grip structure provides friction against the panel edge, while the embedded metal carrier reinforces the profile and helps maintain its fit during use.
Can the trim follow curved or irregular panel edges?
Yes. The flexible PVC construction allows the profile to conform to straight, curved, and shaped panel edges, depending on the bend radius and application.
Can the profile be cut to required lengths?
Yes. The coil / roll supply form allows the profile to be cut to the required installation length during assembly.
Is custom Pinchweld Edge Trim available?
Yes. SealsHub supplies custom profiles with options for dimensions, grip configurations, PVC colors and finishes, metal carrier specifications, roll lengths, and tooling.
Are samples available before bulk orders?
Yes. Samples can be provided for checking profile fit, panel compatibility, and installation before bulk orders.
