7 x 10 mm Pinchweld Edge Trim with Single Grip Tooth on Each Side

Product Overview

SealsHub supplies the 7 x 10 mm PVC Metal-Reinforced Pinchweld Edge Trim with Single Grip Tooth on Each Side, a compact U channel edge protection profile designed for 0.5–2 mm panel thickness applications.

Featuring an 8 mm channel depth and a segmented steel carrier, this profile provides reliable edge retention on thin metal and plastic panels while maintaining a compact structure. The flexible PVC outer layer helps protect exposed panel edges from abrasion, impact, and general wear while providing a clean finished appearance.

The profile incorporates a single grip tooth on each side, providing additional contact with the panel edge to improve positioning stability after installation. The segmented steel carrier supports consistent gripping performance and helps maintain the profile shape while conforming to panel edges.

The push-on design allows quick installation directly onto the panel edge without adhesive or additional fixing hardware in most applications.

Key Features

• Compact U channel profile for thin panel edge protection
• Single grip tooth on each side for improved panel retention
• Segmented steel carrier for stable profile support
• Flexible PVC outer layer for abrasion and impact protection
• Push-on installation without adhesive or additional fixing hardware
• Suitable for metal and plastic panel applications
• Supplied in coils / rolls for continuous installation
• Custom sizes, colors, and profiles available upon request

Specifications

Profile Design

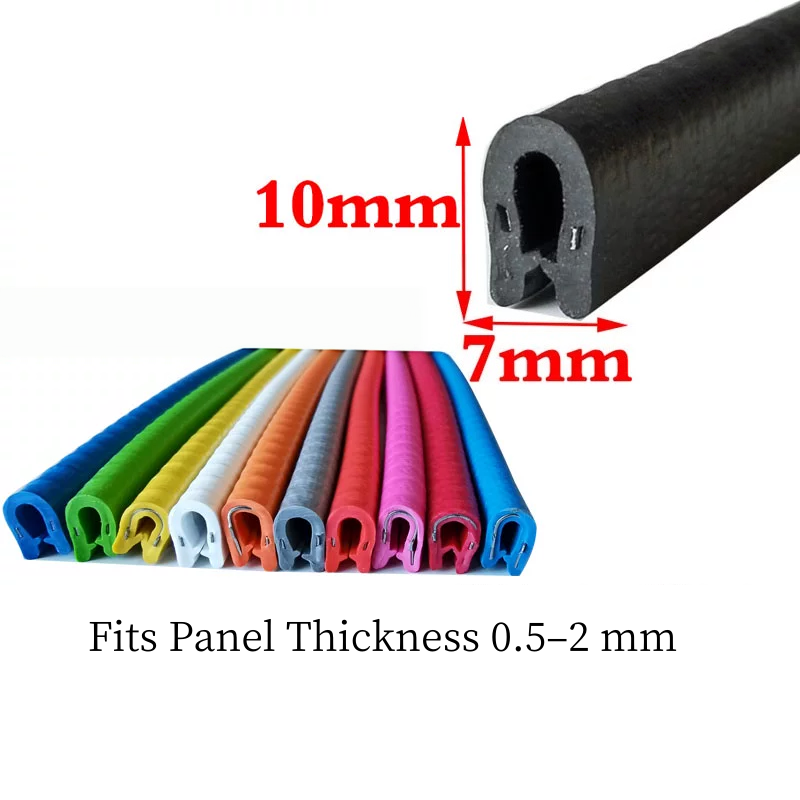

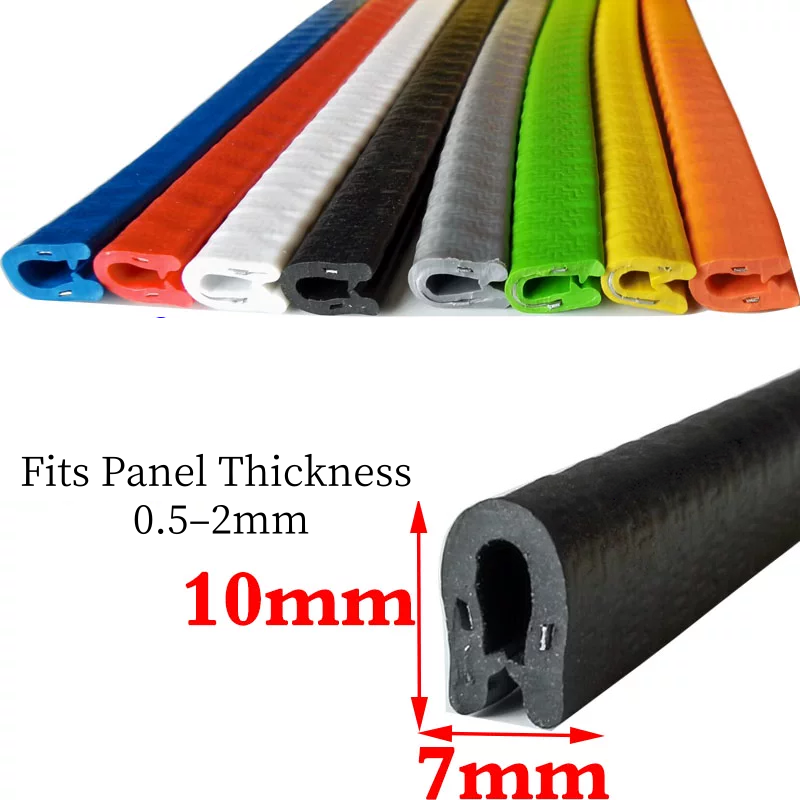

The 7 x 10 mm U channel profile is designed for thin panel edges with a 0.5–2 mm grip range.

Its 8 mm channel depth provides coverage around the exposed panel edge, while the internal metal reinforcement supports gripping and helps keep the trim securely positioned. The flexible PVC exterior provides a finished edge and helps protect the panel edge during handling and normal use.

Installation

The Pinchweld Edge Trim is installed by pressing the U channel directly onto the panel edge.

1. Clean the panel edge to remove dust, oil, or debris.
2. Align the U channel opening with the panel edge.
3. Press the profile firmly into place until fully seated.

No adhesive or additional fixing hardware is normally required.

Applications

Common applications include:

• Thin sheet metal edges
• Electrical cabinets and control panels
• Equipment housings and enclosures
• Machinery covers and protective guards
• Metal and plastic panel edge finishing
• Instrument panels and access covers
• General industrial edge protection

Custom Options

SealsHub supplies custom Metal-Reinforced Pinchweld Edge Trim for OEM and industrial applications.

Custom options include:

• Profile dimensions
• Panel grip ranges
• Internal grip structures
• PVC colors and finishes
• Metal carrier specifications
• Roll lengths
• Custom tooling and mold development

FAQ

How do I choose the correct Pinchweld Edge Trim size?

Select the profile according to the panel thickness, required grip range, and edge coverage requirements. A suitable size helps ensure secure fitting and reliable performance after installation.

Does this Pinchweld Edge Trim require adhesive?

No. The U channel design allows push-on installation directly onto the panel edge without adhesive or additional fixing hardware in most applications.

Can this edge trim be used on metal and plastic panels?

Yes. The profile is suitable for various metal and plastic panel applications, including enclosures, covers, and fabricated components.

Are custom colors and sizes available?

Yes. SealsHub supports custom profile dimensions, colors, and supply lengths for OEM requirements.

Are samples available before bulk orders?

Yes. Samples can be provided for checking profile fit, material performance, and installation compatibility before bulk orders.
