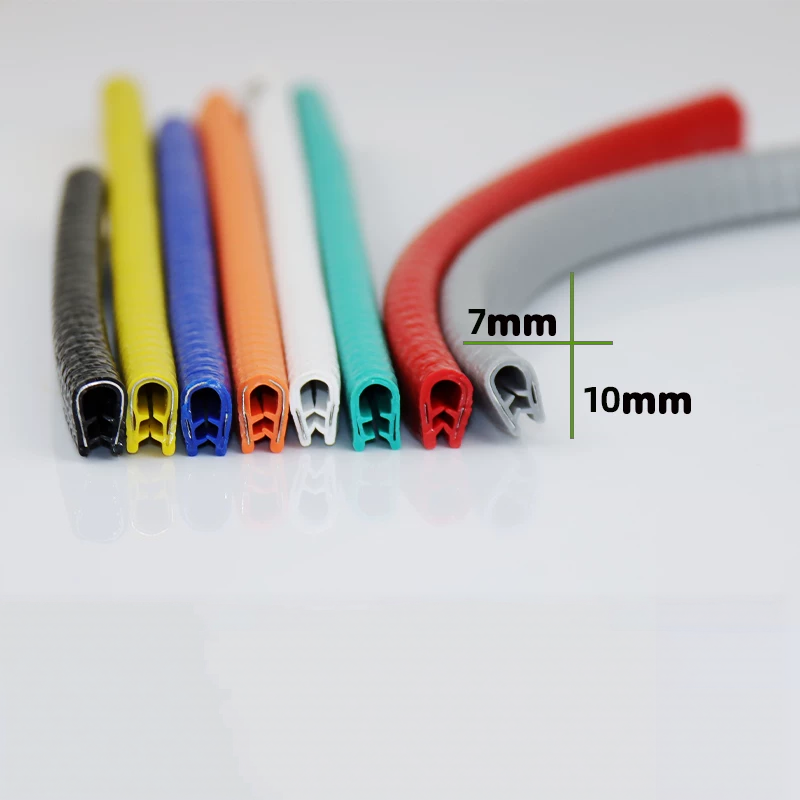

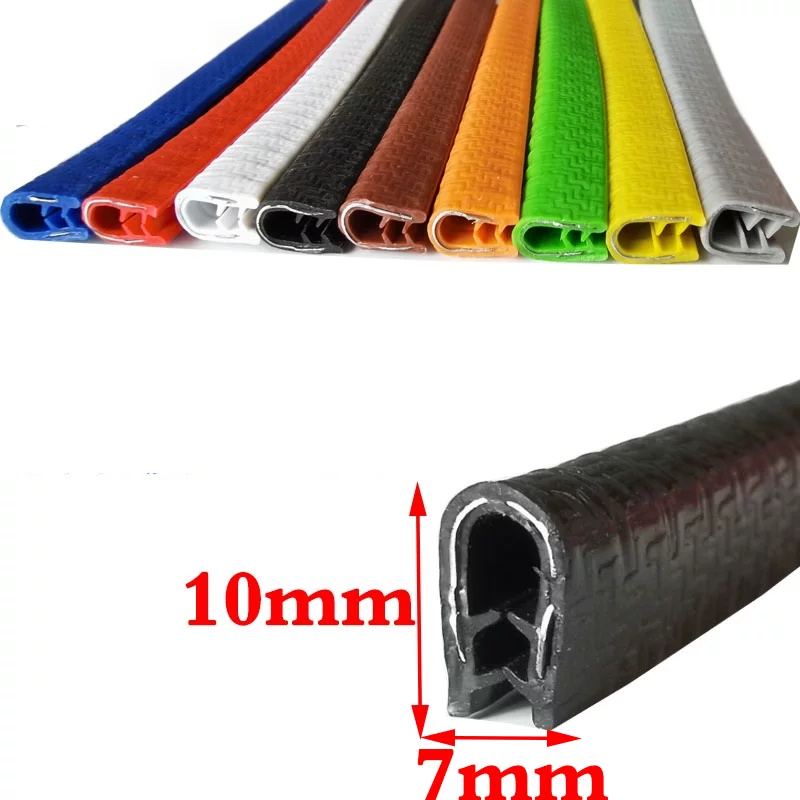

7 x 10 mm Pinchweld Edge Trim with Dual Grip Teeth on Each Side

Product Overview

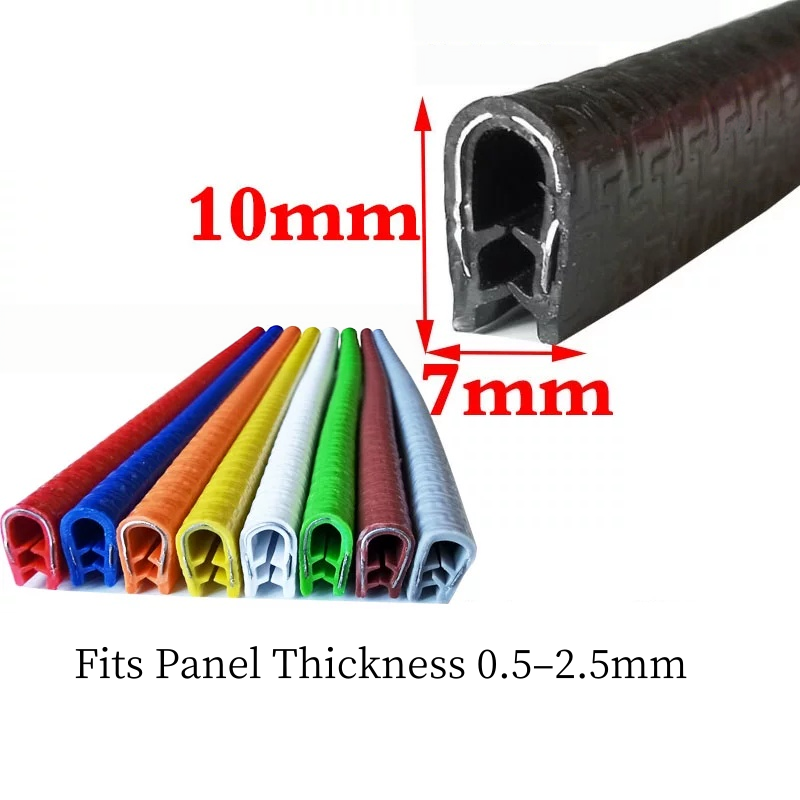

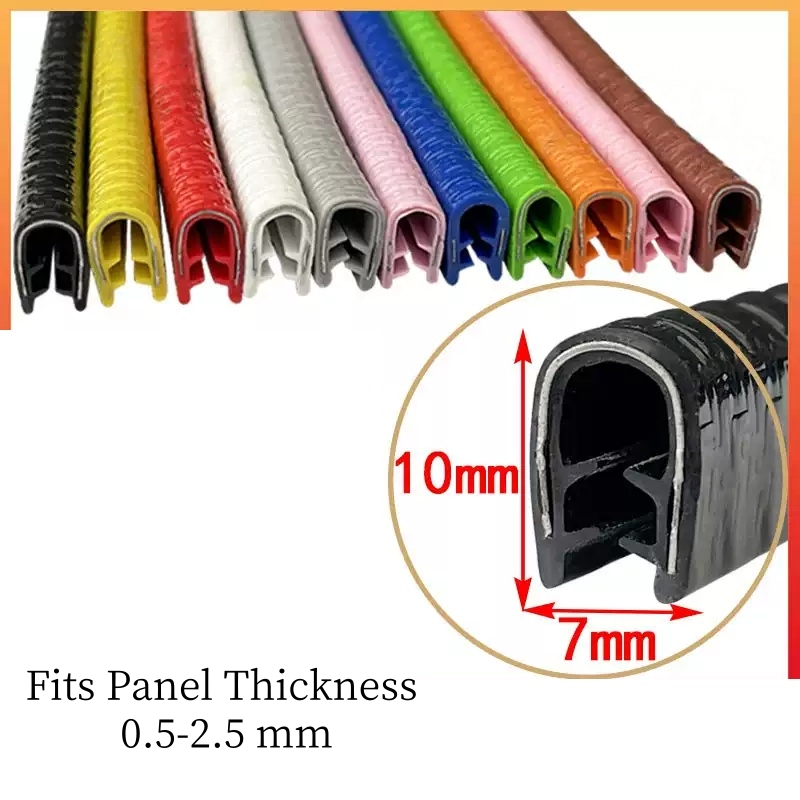

SealsHub supplies the 7 x 10 mm PVC Metal-Reinforced Pinchweld Edge Trim with Dual Grip Teeth on Each Side, a compact U channel edge protection profile designed for 0.5–2.5 mm panel thickness applications.

Featuring an 8.5 mm channel depth and a segmented steel carrier, this profile provides reliable edge retention on thin metal and plastic panels while maintaining a compact structure. The flexible PVC outer layer helps protect exposed panel edges from abrasion, impact, and general wear while providing a clean finished appearance.

The profile incorporates dual grip teeth on each side, providing multiple contact points with the panel edge to improve positioning stability after installation. The segmented steel carrier supports consistent gripping performance and helps maintain the profile shape while conforming to panel edges.

The push-on design allows quick installation directly onto the panel edge without adhesive or additional fixing hardware in most applications.

Key Features

• Compact U channel profile for thin panel edge protection
• Dual grip teeth on each side for improved panel retention
• Segmented steel carrier for stable profile support
• Flexible PVC outer layer for abrasion and impact protection
• Push-on installation without adhesive or additional fixing hardware
• Suitable for metal and plastic panel applications
• Supplied in coils / rolls for continuous installation
• Custom sizes, colors, and profiles available upon request

Specifications

Profile Design

The 7 x 10 mm U channel profile is designed for thin panel edges requiring compact protection and reliable edge retention.

The dual grip teeth on each side provide additional contact points with the panel edge to improve positioning stability after installation. The segmented steel carrier supports consistent gripping performance and maintains the profile shape, while the flexible PVC exterior protects exposed edges and provides a finished appearance.

Installation

The Pinchweld Edge Trim is installed by pressing the U channel directly onto the panel edge.

1. Clean the panel edge to remove dust, oil, and debris.
2. Align the U channel opening with the panel edge.
3. Press the profile firmly onto the edge until fully seated.

No adhesive or additional fixing hardware is normally required.

Applications

Common applications include:

• Thin sheet metal edges
• Electrical cabinets and control panels
• Equipment housings and enclosures
• Machinery covers and protective guards
• Metal and plastic panel edge finishing
• Instrument panels and access covers
• General industrial edge protection

Custom Options

SealsHub supplies custom Metal-Reinforced Pinchweld Edge Trim for OEM and industrial applications.

Custom options include:

• Profile dimensions
• Panel grip ranges

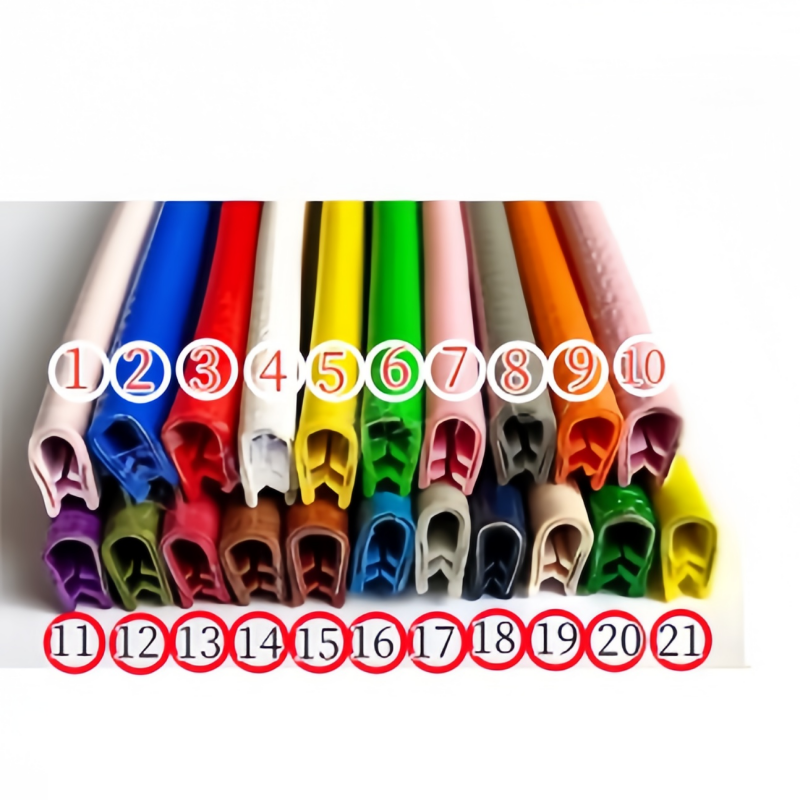

• PVC colors and finishes
• Metal carrier specifications
• Roll lengths
• Custom tooling and mold development

FAQ

How do I choose the correct Pinchweld Edge Trim size?

Select the profile according to the panel thickness, required grip range, and edge coverage requirements. A suitable size helps ensure secure fitting and reliable performance after installation.

Does this Pinchweld Edge Trim require adhesive?

No. The U channel design allows push-on installation directly onto the panel edge without adhesive or additional fixing hardware in most applications.

Can this edge trim be used on metal and plastic panels?

Yes. The profile is suitable for various metal and plastic panel applications, including enclosures, covers, and fabricated components.

Are custom colors and sizes available?

Yes. SealsHub can supply custom profile dimensions, grip ranges, colors, reinforcement specifications, and roll lengths for OEM applications.

Are samples available before bulk orders?

Yes. Samples can be provided for checking profile fit, material performance, and installation compatibility before bulk orders.
