12 x 19 mm Square Top Pinchweld Edge Trim with Dual Grip Teeth
![]()
Product Overview
SealsHub supplies the 12 x 19 mm Square Top PVC Metal-Reinforced Pinchweld Edge Trim with Dual Grip Teeth, a flexible U channel profile designed to protect and finish exposed panel edges with a grip range of 5–8 mm.
The profile features a square top surface combined with flexible PVC and an internal segmented steel carrier to provide reinforced edge retention while maintaining flexibility for installation. With a 17 mm channel depth, it provides extended coverage of exposed panel edges on metal and plastic panels.
Dual grip teeth on each side create multiple contact points with the panel edge to help maintain the trim position after installation. The square top design provides a straight and structured finished appearance, while the flexible PVC exterior helps protect exposed edges from abrasion, impact, and general wear.
The push-on design allows the profile to be installed directly onto the panel edge without adhesive or additional fixing hardware in most applications. The profile is supplied in coils or rolls for convenient continuous installation.
![]()
Key Features
- Square top U channel profile for a clean and structured edge finish
- Dual grip teeth on each side for secure profile retention
- Segmented steel carrier for reinforced edge retention
- Flexible PVC exterior for edge protection and finishing
- 17 mm channel depth for extended edge coverage
- Suitable for panel thicknesses from 5–8 mm
- Push-on installation without adhesive or additional fixing hardware
- Suitable for metal and plastic panel applications
- Supplied in coils / rolls for continuous installation
![]()
![]()
Specifications
| Item | Details |
|---|
| Product Type | Metal-Reinforced Pinchweld Edge Trim |
| Profile Shape | U Channel |
| Top Profile | Square Top |

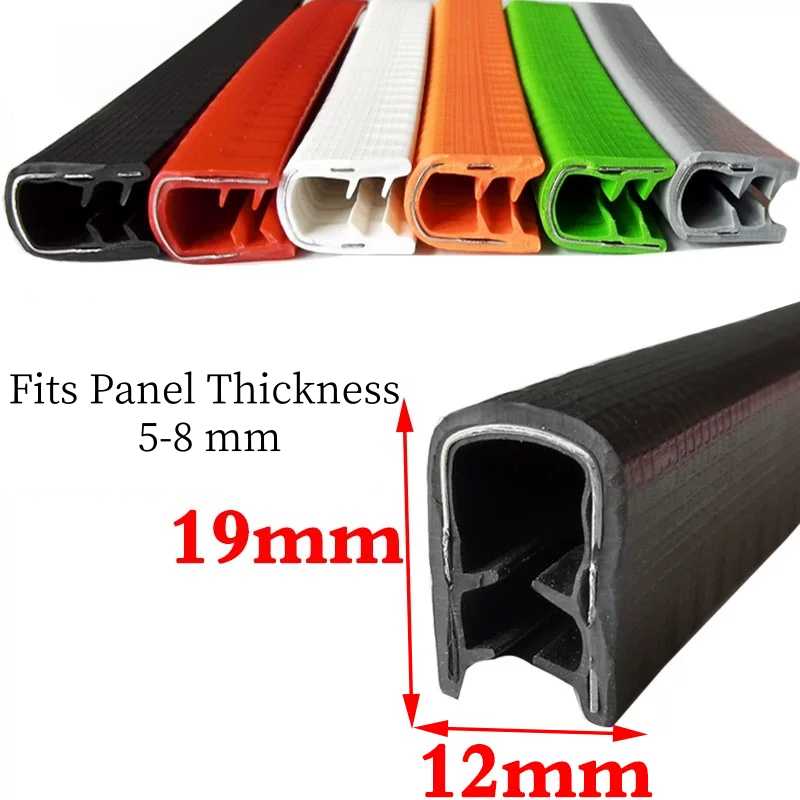

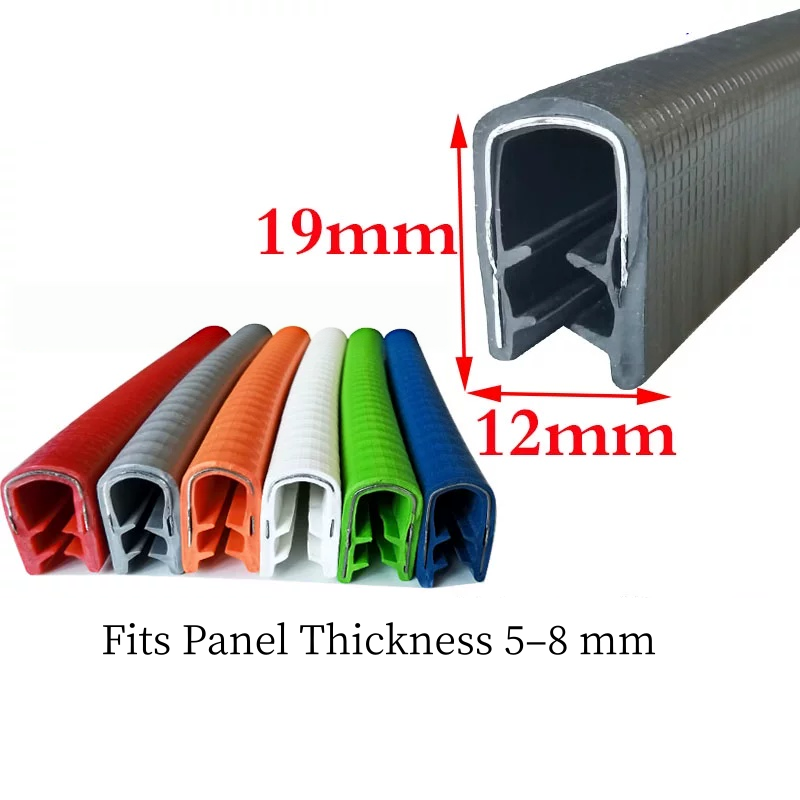

| Profile Size (W x H) | 12 x 19 mm |
| Grip Range | 5–8 mm |
| Channel Depth | 17 mm |
| Internal Grip Structure | Dual Grip Teeth on Each Side |
| Metal Carrier | Segmented Steel Carrier |
| Material | PVC + Metal Carrier |
| Structure | Flexible PVC with Internal Metal Reinforcement |
| Installation | Push-On Installation |
| Supply Form | Coil / Roll |
| Colors | Black, Red, Orange, White, Gray, Royal Blue, Brown, Grass Green |
Profile Design
The 12 x 19 mm square top U channel profile combines a flexible PVC outer layer with an internal segmented steel carrier for reinforced edge retention.
The square top profile provides a straight and uniform appearance on exposed edges, while dual grip teeth on each side create multiple contact points with the panel edge to help maintain the trim position after installation.
The 17 mm channel depth provides extended coverage of the panel edge, making the profile suitable for applications requiring reliable edge protection and a clean finished appearance.
Installation
The Pinchweld Edge Trim is installed by pressing the U channel directly onto the panel edge.
- Clean the panel edge to remove dust, oil, and debris.
- Align the channel opening with the panel edge.
- Press the profile firmly onto the edge until fully seated.
- Check that the trim is evenly positioned along the required edge.
The dual grip teeth and segmented steel carrier help maintain the profile position after installation. No adhesive or additional fixing hardware is normally required.
![]()
![]()
Applications
Common applications include:
• Electrical cabinets and control panels
• Thick sheet metal edges and enclosure panels
• Machinery covers and protective guards
• Equipment housings and access panels
• Automotive trim and body components
• Industrial equipment edge protection
• Metal and plastic panel finishing
Custom Options
SealsHub supplies custom Metal-Reinforced Pinchweld Edge Trim for OEM and industrial applications.
Custom options include:
- Profile dimensions
- Panel grip ranges
- Grip configurations
- PVC colors and finishes
- Segmented steel carrier specifications
- Roll lengths
- Custom tooling and mold development
FAQ
What is Pinchweld Edge Trim used for?
Pinchweld Edge Trim is used to cover, protect, and finish exposed edges of metal and plastic panels. The U channel design provides a push-on edge covering for industrial and fabricated components.
How does the Pinchweld Edge Trim stay in place?
The internal grip structure provides friction against the panel edge, while the segmented steel carrier reinforces the profile and helps maintain its fit during use.
Can the trim follow curved or irregular panel edges?
Yes. The flexible PVC construction allows the profile to conform to straight, curved, and shaped panel edges, depending on the bend radius and application.
Can the profile be cut to required lengths?
Yes. The coil / roll supply form allows the profile to be cut to the required installation length during assembly.
Is custom Pinchweld Edge Trim available?
Yes. SealsHub supplies custom profiles with options for dimensions, grip configurations, PVC colors and finishes, segmented steel carrier specifications, roll lengths, and tooling.
Are samples available before bulk orders?
Yes. Samples can be provided for checking profile fit, panel compatibility, and installation before bulk orders.
