Metal Backed Strip Brush Seal
Product Overview

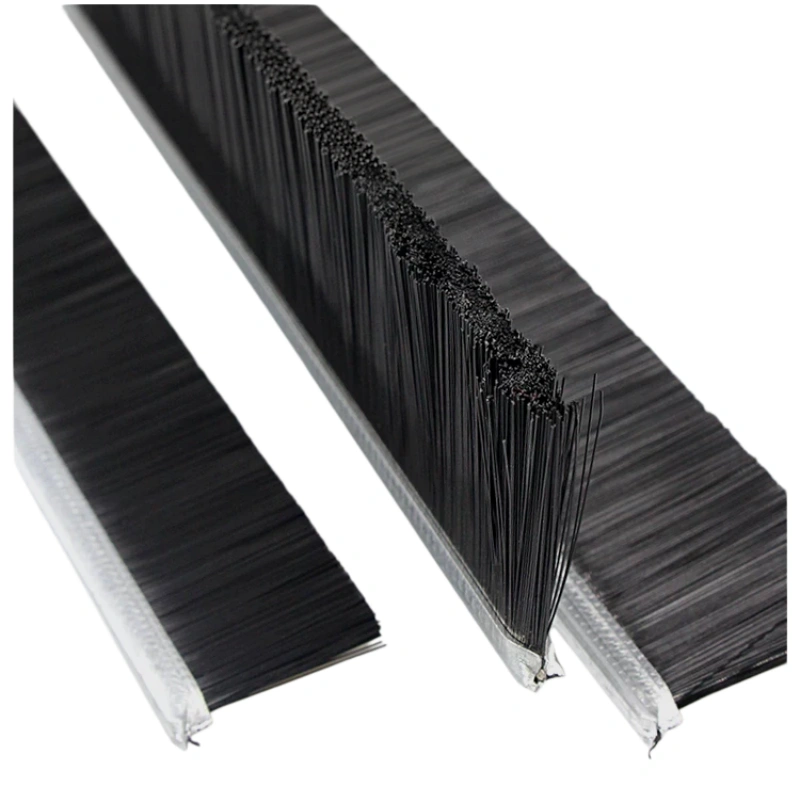

Metal Backed Strip Brush Seal is an industrial sealing solution featuring brush filaments securely fixed into a durable metal holder. Designed to provide flexible contact and reliable protection, it helps block dust, debris, air, light, and unwanted gaps while allowing smooth movement between surfaces.
The standard configuration uses a 4 × 4 mm metal holder with PP filaments for general sealing applications. Other holder sizes and filament materials are available for custom requirements.
Available filament materials include PP, nylon, steel wire, brass wire, wool, sisal, and horsehair, providing solutions for sealing, protection, cleaning, and specialized industrial applications.
For applications requiring additional mounting support, compatible aluminum profiles and holders can also be supplied as optional accessories.
![]()
Key Features
- Durable metal holder construction
- Standard 4 × 4 mm holder with PP filament option
- Custom holder sizes and filament materials available
- Flexible brush contact for uneven gaps and moving surfaces
- Suitable for sealing, protection, cleaning and industrial applications
- Aluminum mounting profiles available upon request
Applications
Metal backed strip brush seals are widely used in:
- Industrial doors and gates
- Door bottom sealing systems
- Conveyor equipment
- Packaging machinery
- Automated production equipment
- Sliding systems
- Dust and debris protection
- Machine guarding and gap sealing
Specifications
| Item | Details |
|---|

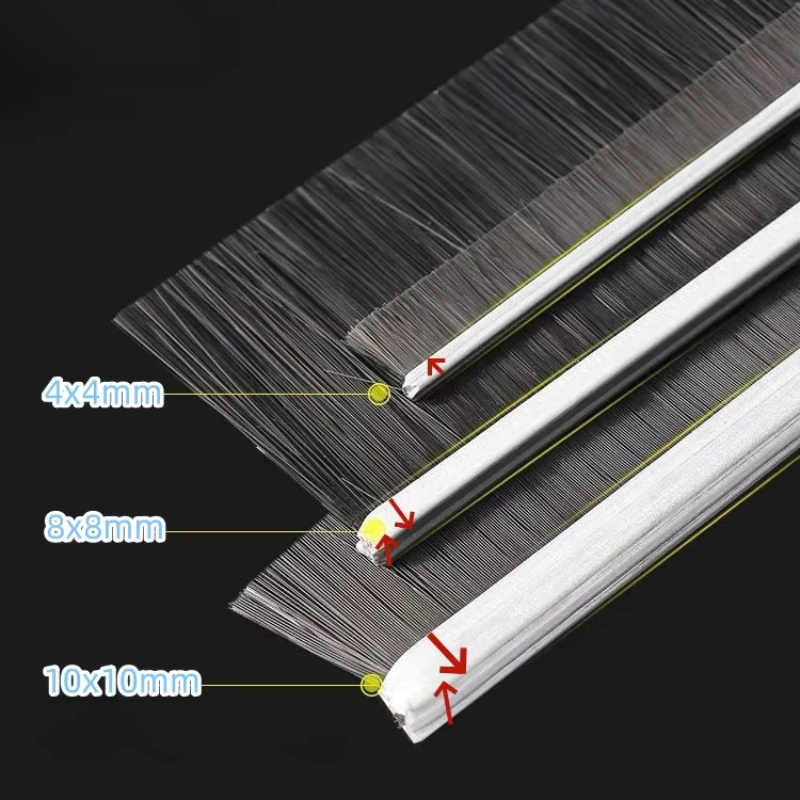

| Holder Size | Standard: 4 × 4 mm; other sizes available upon request |

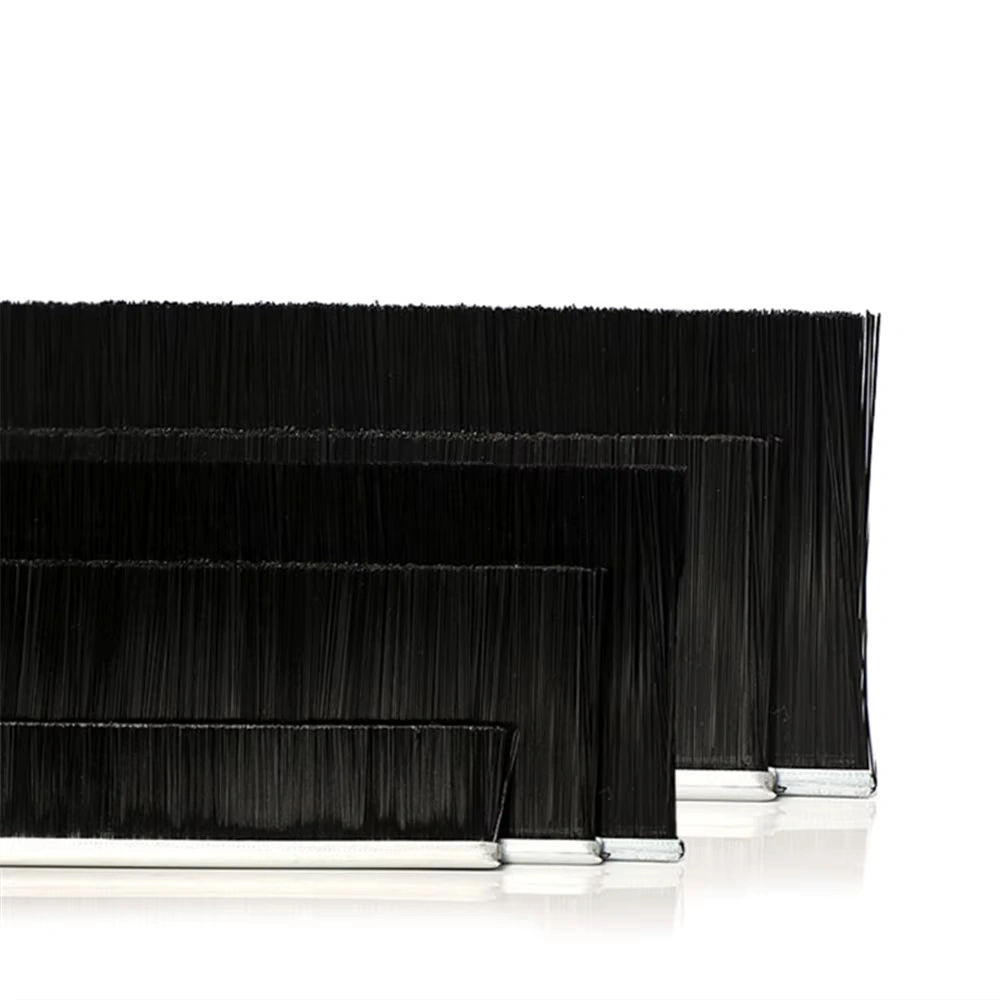

| Brush Height | 10–300 mm (filament length only, excluding metal holder) |
| Standard Filament Diameter | 0.15 mm, 0.20 mm |
| Custom Filament Diameter | Available upon request |
| Maximum Length | Up to 3 meters |
| Filament Material | PP (Standard), Nylon, Steel Wire, Brass Wire, Wool, Sisal, Horsehair available for custom orders |
| Color | Black (Standard); other colors available upon request |
Select Specification
![]()
Select Specification (Holder | Brush Height | Length)
Examples:
- 4 × 4 mm Holder | 10 mm | 500 mm
- 4 × 4 mm Holder | 25 mm | 500 mm
- 4 × 4 mm Holder | 100 mm | 500 mm
Note: Standard pricing is based on the 4 × 4 mm metal holder. Brush height refers to the filament length only and excludes the metal holder.
Shipping Information
Standard shipping length is normally supplied in 500 mm sections due to transportation size limitations.
For continuous lengths of 1 meter or longer, please contact us before ordering. Additional shipping charges may apply due to oversized packaging requirements.

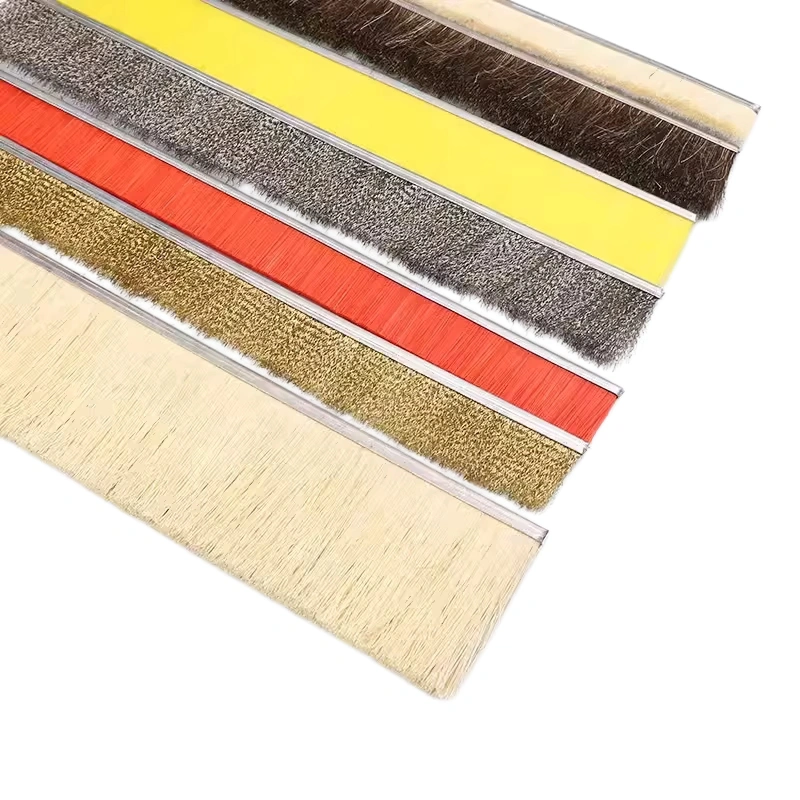

Filament Material Options
PP is the standard filament material for most applications. Other materials are available for custom orders based on performance requirements.
![]()
| Filament Material | Typical Applications |
|---|
| PP (Standard) | Door sealing, dust protection, weather sealing |

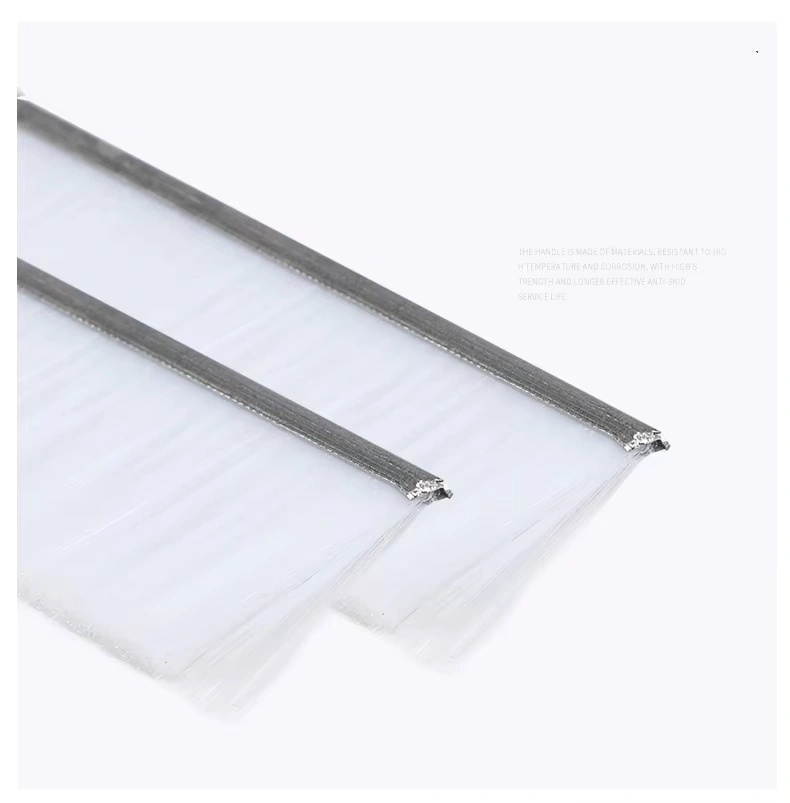

| Nylon | Industrial equipment, automation systems, wear-resistant applications |

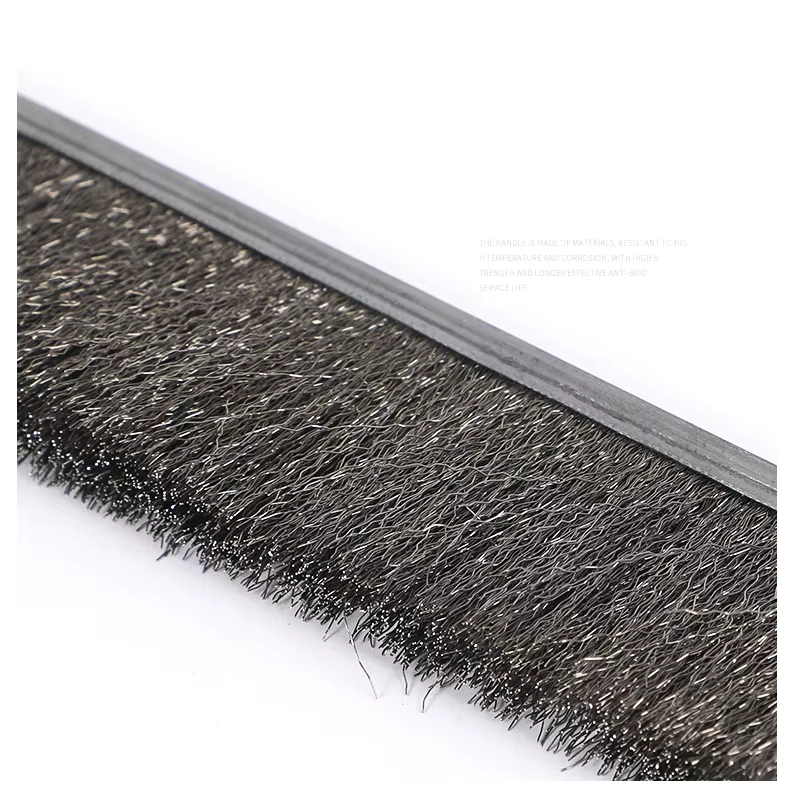

| Steel Wire | Heavy-duty cleaning, surface treatment, abrasion applications |

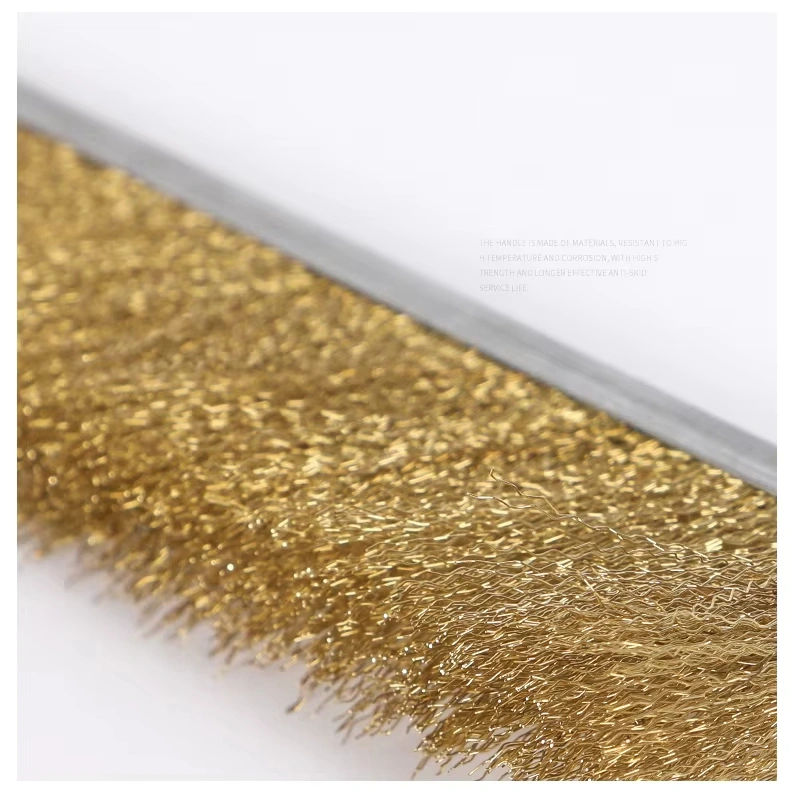

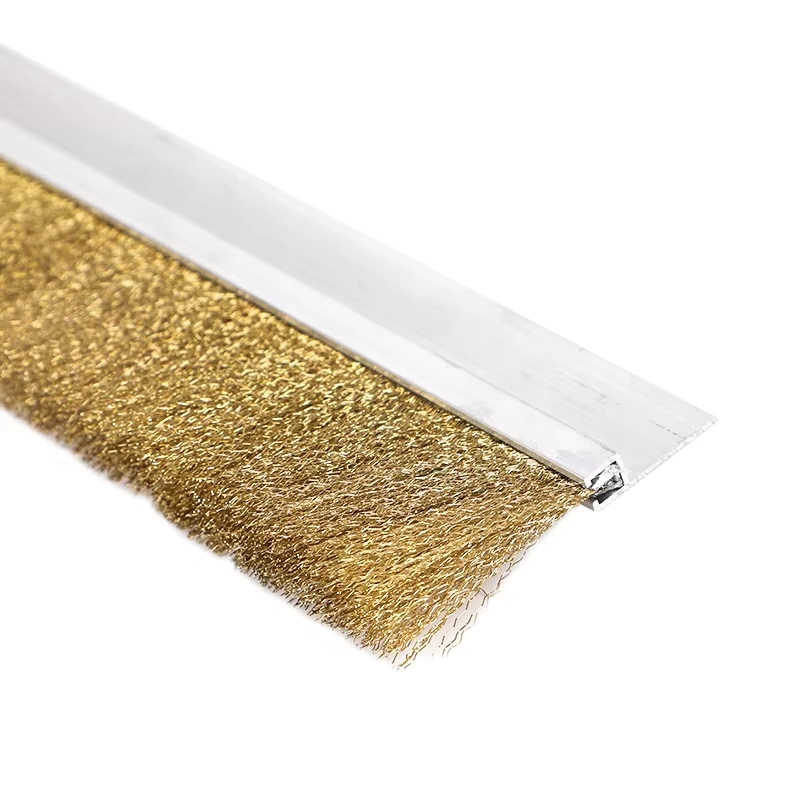

| Brass Wire | Sensitive surface cleaning and special industrial applications |
| Wool | Surface protection, polishing and delicate applications |

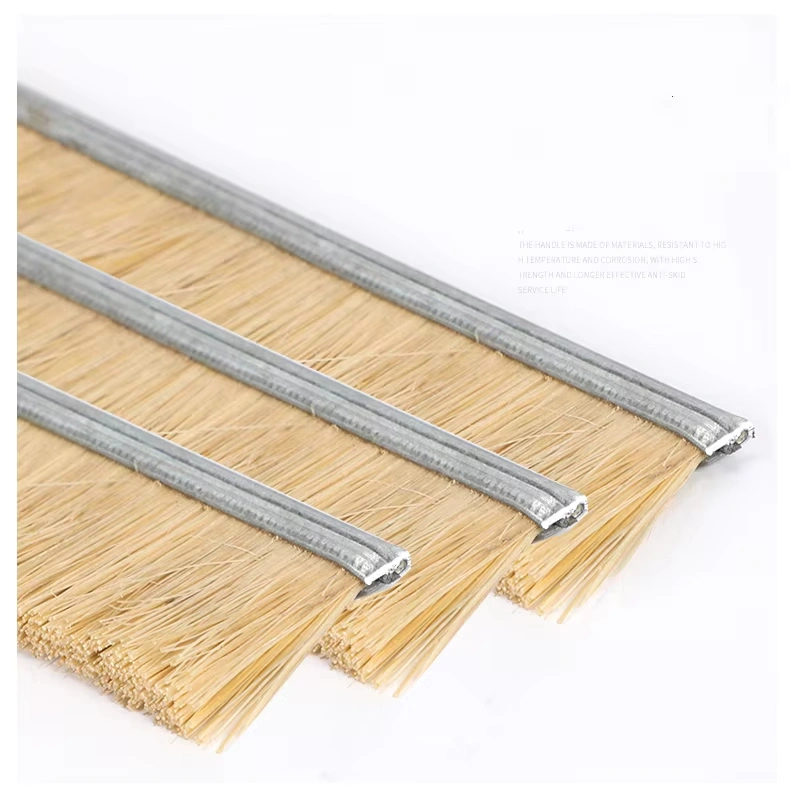

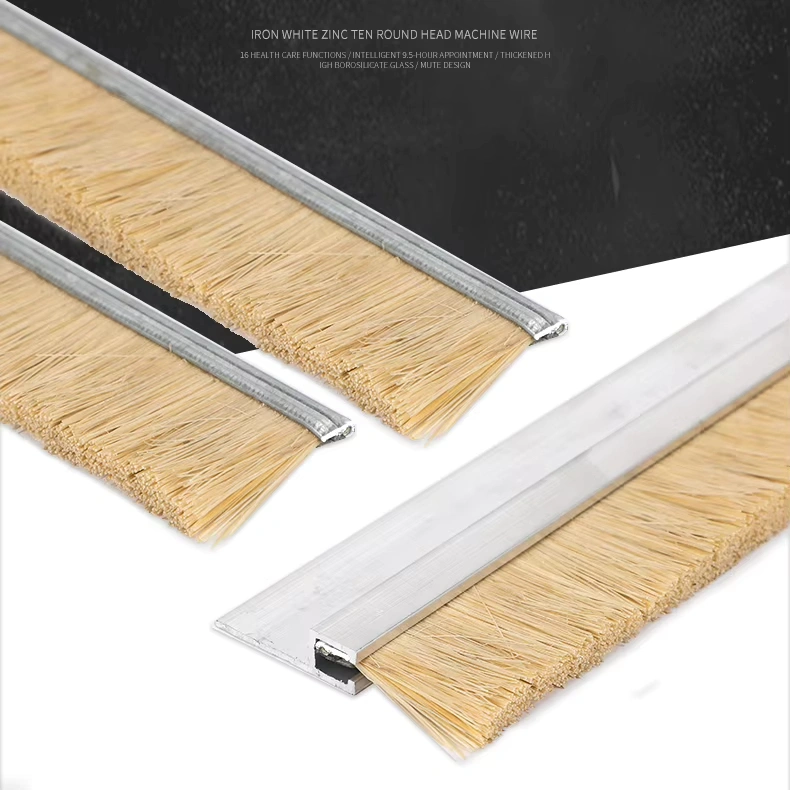

| Sisal | Natural fiber cleaning and polishing |

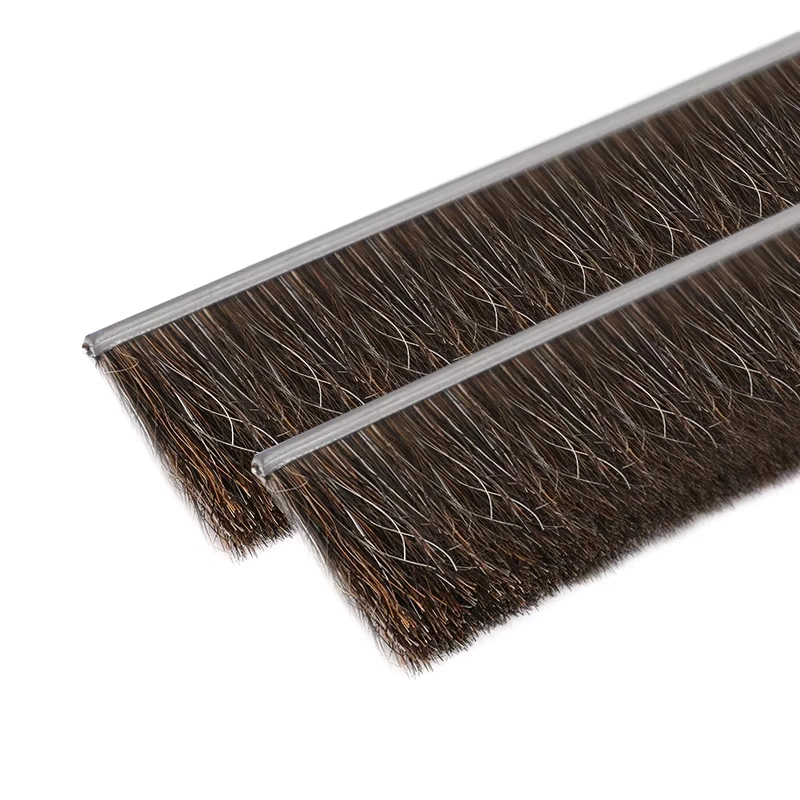

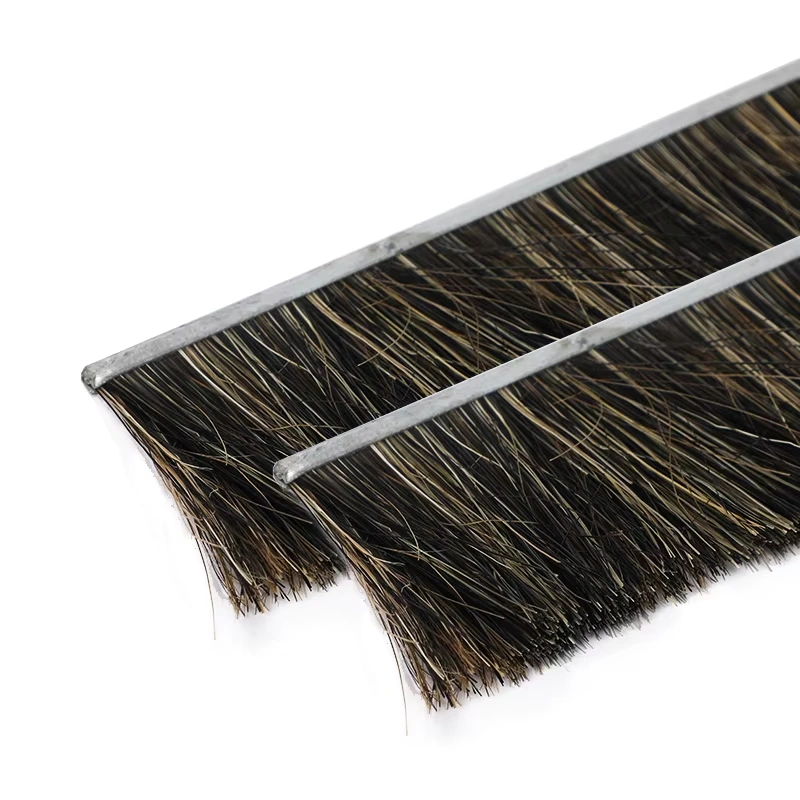

| Horsehair | Fine surface protection and precision applications |
Note: Listed prices are based on the standard 4 × 4 mm metal holder with PP filaments. Brush height refers to filament length only and excludes the metal holder.

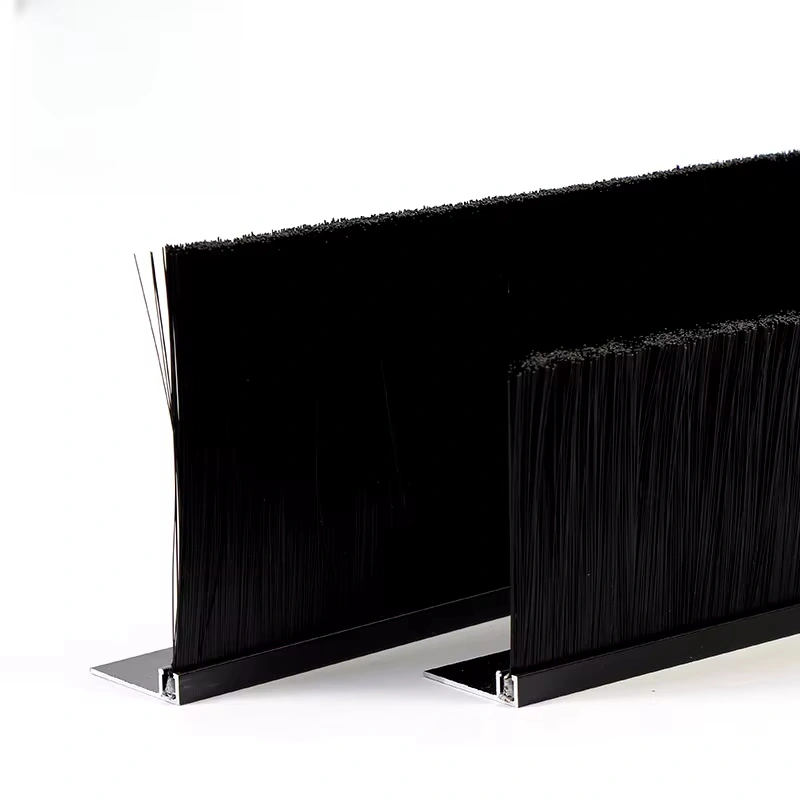

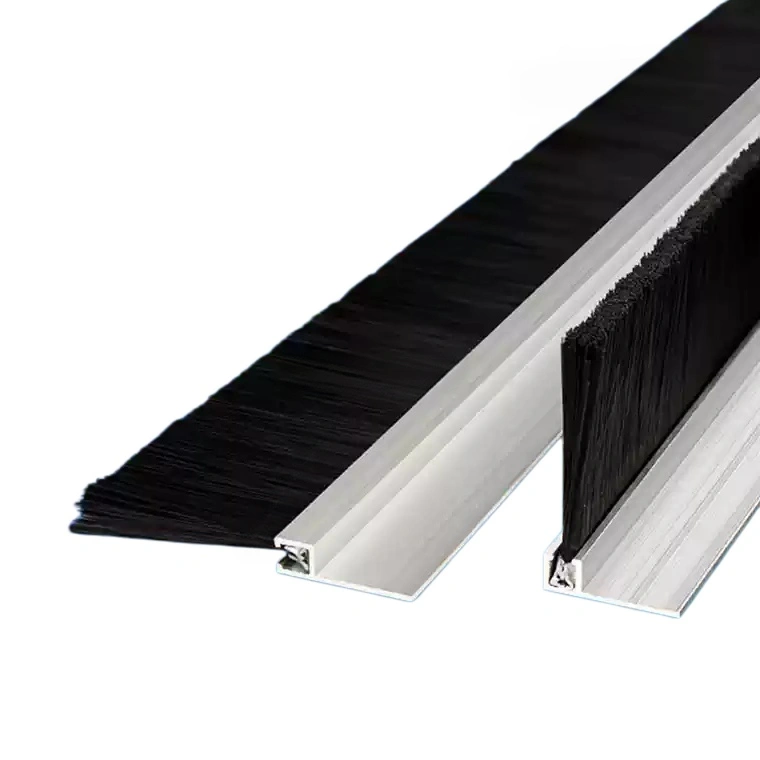

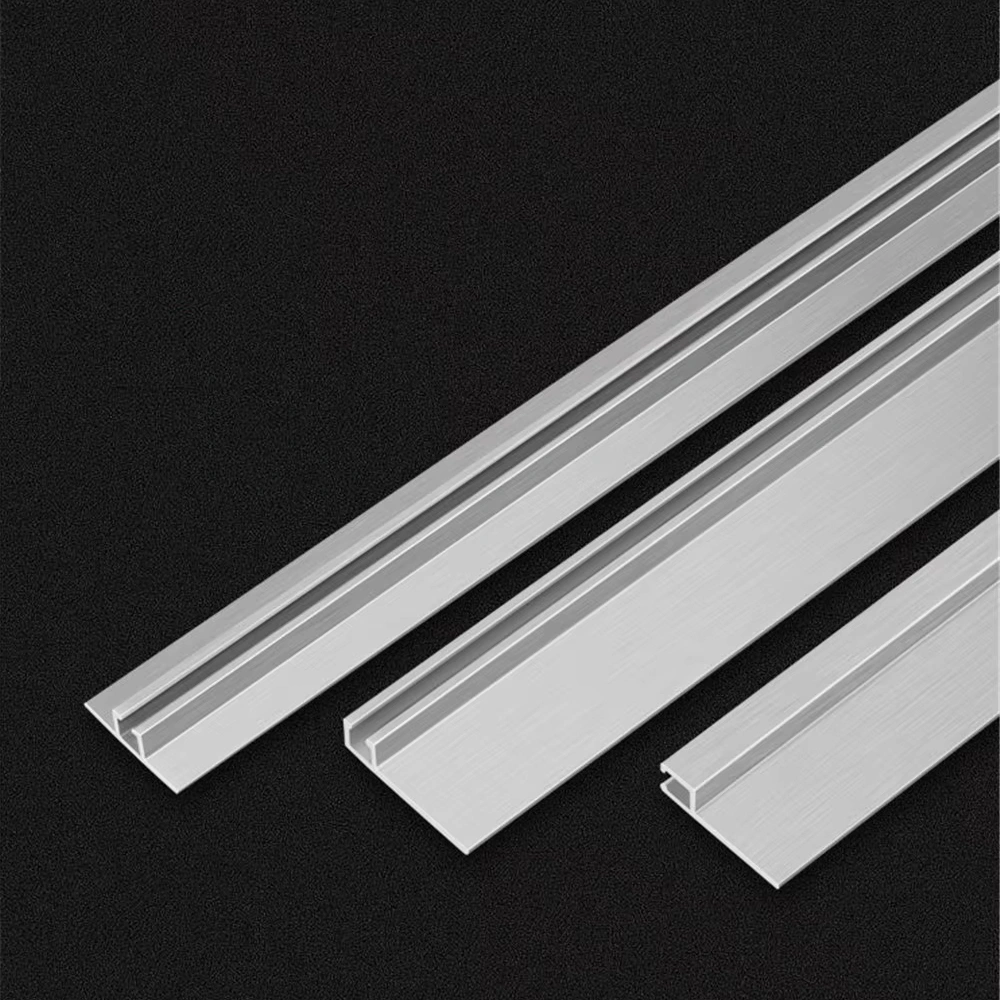

Aluminum Profile & Holder Options
Metal backed strip brush seals can be used as standalone sealing components or installed with aluminum profiles for specific applications.
For projects requiring easier installation or additional structural support, matching aluminum holders and profiles are available, including solutions for:
- Door bottom brush seals
- Panel sealing
- Industrial equipment protection
- Custom mounting systems
Please contact us for aluminum profile requirements or installation drawings.
![]()
![]()
![]()
Custom Options
We can customize:
- Metal holder dimensions
- Filament materials
- Filament diameter
- Brush height
- Brush density
- Length
- Aluminum mounting profiles
OEM production is available according to drawings, samples, or application requirements.
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
