9 x 10 mm Pinchweld Edge Trim with Single Grip Tooth on One Side
![]()
Product Overview

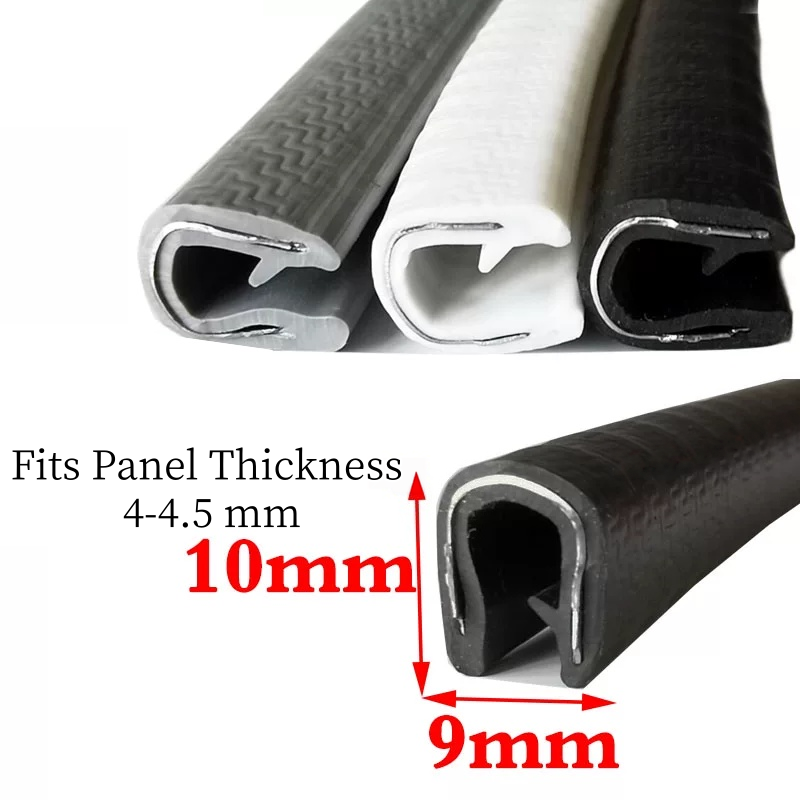

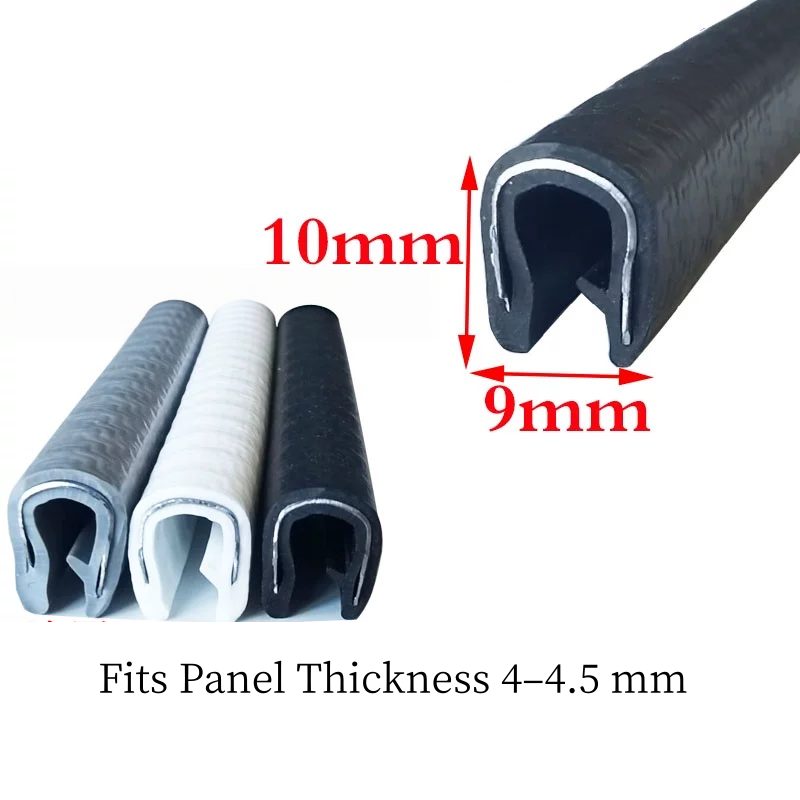

SealsHub supplies the 9 x 10 mm PVC Metal-Reinforced Pinchweld Edge Trim with Single Grip Tooth on One Side, a compact U channel profile designed to protect and finish exposed panel edges with a grip range of 4–4.5 mm.
The profile combines flexible PVC with internal metal reinforcement to provide stable edge retention while maintaining flexibility for installation. With an 8 mm channel depth, it provides compact coverage for exposed panel edges on metal and plastic panels.
A single grip tooth on one side provides contact with the panel edge to help maintain the trim position after installation. The flexible PVC exterior covers the exposed edge and helps protect it from abrasion and general wear while providing a clean finished appearance.
The push-on design allows the profile to be installed directly onto the panel edge without adhesive or additional fixing hardware in most applications. The profile is supplied in coils or rolls for convenient continuous installation.
![]()
Key Features
- Compact U channel profile for panel edge protection and finishing
- Single grip tooth on one side for profile retention
- Internal metal reinforcement for stable profile support
- Flexible PVC exterior for edge protection and a finished appearance
- 8 mm channel depth for compact edge coverage
- Suitable for panel thicknesses from 4–4.5 mm
- Push-on installation without adhesive or additional fixing hardware
- Suitable for metal and plastic panel applications
- Supplied in coils / rolls for continuous installation
![]()
![]()
Specifications
| Item | Details |
|---|
| Product Type | Metal-Reinforced Pinchweld Edge Trim |
| Profile Shape | U Channel |
| Profile Size (W x H) | 9 x 10 mm |
| Grip Range | 4–4.5 mm |
| Channel Depth | 8 mm |
| Internal Grip Structure | Single Grip Tooth on One Side |
| Metal Carrier | Segmented Steel Carrier |
| Material | PVC + Metal Carrier |
| Structure | Flexible PVC with Internal Metal Reinforcement |
| Installation | Push-On Installation |
| Colors | Black, Grey, White, Yellow |
| Supply Form | Coil / Roll |
Profile Design
The 9 x 10 mm U channel profile combines a flexible PVC outer layer with internal metal reinforcement for stable edge retention.
A single grip tooth is positioned on one side of the channel to grip the panel edge and help maintain the trim position after installation. The 8 mm channel depth provides compact coverage of the exposed panel edge.
This construction provides a balance of flexibility, edge protection, and secure retention for metal and plastic panels.
Installation
The Pinchweld Edge Trim is installed by pressing the U channel directly onto the panel edge.
- Clean the panel edge to remove dust, oil, and debris.
- Align the channel opening with the panel edge.
- Press the profile firmly onto the edge until fully seated.
- Check that the trim is evenly positioned along the required edge.
The single grip tooth and internal metal reinforcement help maintain the profile position after installation. No adhesive or additional fixing hardware is normally required.
![]()
![]()
Applications
Common applications include:
- Sheet metal edges
- Electrical cabinets and control panels
- Equipment housings and enclosures
- Machinery covers and protective guards
- Instrument panels and access covers
- Metal and plastic panel edge finishing
- Fabricated metal and plastic components
- General industrial edge protection
Custom Options
SealsHub supplies custom Metal-Reinforced Pinchweld Edge Trim for OEM and industrial applications.
Custom options include:
- Profile dimensions
- Panel grip ranges
- Grip tooth configurations
- PVC colors and finishes
- Metal carrier specifications
- Roll lengths
- Custom tooling and mold development
FAQ
What is Pinchweld Edge Trim used for?
Pinchweld Edge Trim is used to cover, protect, and finish exposed edges of metal and plastic panels. The U channel design provides a push-on edge covering for industrial and fabricated components.
How does the Pinchweld Edge Trim stay in place?
The internal grip structure provides friction against the panel edge, while the metal reinforcement supports the profile and helps maintain its fit during use.
Can the trim follow curved or irregular panel edges?
Yes. The flexible PVC construction allows the profile to conform to straight, curved, and shaped panel edges, depending on the bend radius and application.
Can the profile be cut to required lengths?
Yes. The coil / roll supply form allows the profile to be cut to the required installation length during assembly.
Is custom Pinchweld Edge Trim available?
Yes. SealsHub supplies custom profiles with options for dimensions, grip configurations, PVC colors and finishes, metal carrier specifications, roll lengths, and tooling.
Are samples available before bulk orders?
Yes. Samples can be provided for checking profile fit, panel compatibility, and installation before bulk orders.
