7 × 9 mm  Rounded Top Barbed T Profile Edge Trim

Product Overview

SealsHub supplies 7 x 9 mm Rounded Top Barbed T Profile Edge Trim made from flexible Soft PVC for small panel edge finishing, gap covering and surface protection. Featuring a rounded top flange and barbed stem design, this compact T profile trim provides secure push-in installation and a clean finished appearance.

Designed for small panels, enclosures, equipment components and fabricated parts, this insert trim helps protect exposed edges from impact and abrasion while improving the finished look.

Key Features

• Rounded top surface provides a smooth and finished appearance
• Barbed stem improves retention for secure push-in installation
• Flexible PVC construction allows easy fitting
• Helps protect small exposed edges from impact and wear
• Compact profile suitable for thin panels and components
• Available in black and white, with different hardness options available

Specifications

Installation

Insert the 6 mm stem into a suitable slot or groove and press the trim into position. The barbs grip the slot walls to maintain a secure fit.

Ensure the slot depth and width are compatible with the stem dimensions before installation.

Applications

Common applications include:

• Small sheet metal panels
• Electrical enclosures
• Equipment housings
• Machinery components
• Thin panel edge finishing
• Protective trim applications

Custom Options

SealsHub supports OEM customization for different application requirements, including:

• Custom profile dimensions
• Colors
• Hardness levels
• Lengths
• Packaging options

Custom extrusion solutions are available upon request for specific industrial applications.

FAQ

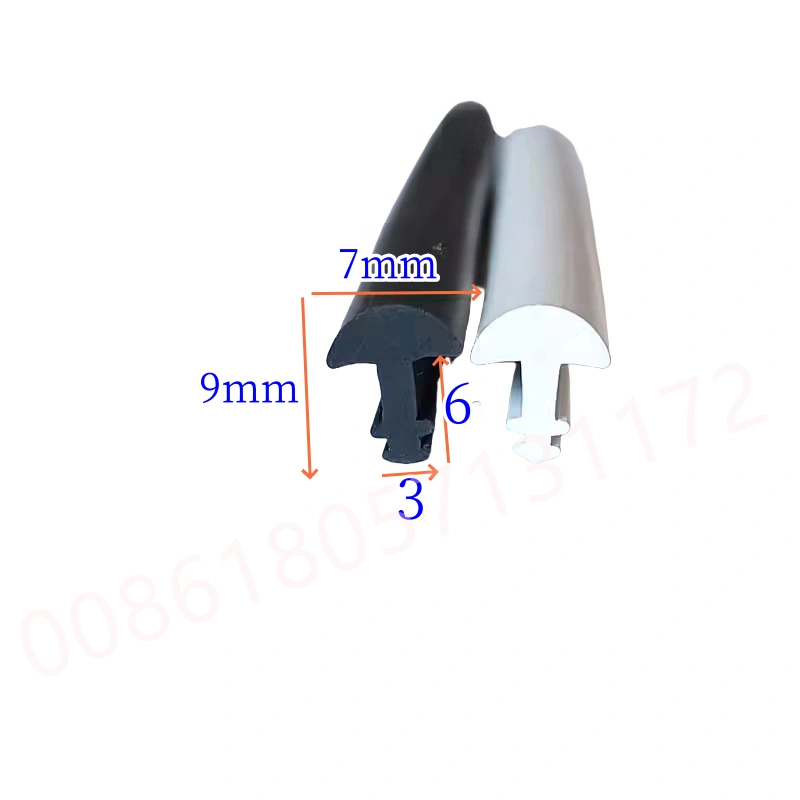

What does 7 x 9 mm mean?

The size refers to the flange width x overall height of the T profile edge trim. Stem dimensions are listed separately to help confirm installation requirements.

How does the barbed stem work?

The barbed stem grips the slot walls after insertion, helping secure the trim in place without additional adhesive.

Are different hardness options available?

Yes. SealsHub can provide different hardness levels depending on application requirements. Some colors, such as white, may have different hardness characteristics based on material formulation.

Can this T profile edge trim be customized?

Yes. SealsHub provides customized sizes, colors, hardness, lengths and packaging for different application requirements.
